Kanzo is a word that dates back to the times of the troubadours, who traveled widely and experienced all kinds of adventures. The Kanzo Speed is Ridley’s answer to those who want to stay ahead of the pack in one of the many gravel races that have sprung up all over the world. One such race is Kansas 200-mile Dirty Kanza, in which participants battle it out to be the first to cross the finish line. The 36mm tire clearance is more race-oriented, but leaves enough space for different setups, with ample space built into the frame to fit mudguards. Kanzo Speed is the most flexible frame platform in the Ridley range: road, gravel or cyclo-cross, this bike can handle it all simply by changing the wheel set-up.
- specific all-road geometry which combines the best of both road and cyclo-cross geometries
- hidden fender mounts on the frame and fork give the bike a clean look when not in use
- tire clearance of 36mm offers enough space for different set-ups
- all cables run full internally through the frame which avoids mud and water to ruin your shifting performance
- 12mm TA in frame and fork
- flat-mount disc brakes ensure you have control of the bike in all conditions – both on and offroad
| KANZO SPEED |
XXS | XS | S | M | L | XL |  |
|---|---|---|---|---|---|---|---|
| A - MAX. SADDLE HEIGHT | 745 | 775 | 805 | 835 | 865 | 895 | |
| B - SEAT TUBE, CENTER-TOP | 450 | 480 | 510 | 540 | 570 | 600 | |
| C - TOP TUBE, HORIZONTAL | 515 | 525 | 545 | 565 | 585 | 600 | |
| D - HEAD TUBE LENGTH | 100 | 120 | 140 | 165 | 195 | 220 | |
| E - SEAT TUBE ANGLE | 75,0 | 74,5 | 73,5 | 73,0 | 72,5 | 72,5 | |
| F - HEAD TUBE ANGLE | 70,5 | 71,0 | 71,0 | 71,5 | 71,5 | 72,0 | |
| G - CHAINSTAY LENGTH | 420 | 420 | 422 | 422 | 422 | 422 | |
| H - BB DROP | 74 | 74 | 72 | 72 | 70 | 70 | |
| I - WHEELBASE | 999 | 999 | 1023 | 1024 | 1039 | 1049 | |
| J - STANDOVER HEIGHT | 733 | 759 | 784 | 810 | 839 | 868 | |
| S - STACK | 520 | 542 | 559 | 584 | 611 | 637 | |
| R - REACH | 375 | 376 | 380 | 386 | 394 | 399 |
RIDLEY [5 years] - Warranty is granted by the producer for a period of 60 months.
All RIDLEY frames are warranted by Producer against manufacturing defects in material and/or workmanship for 5 years of the original owner if the frame is purchased from an Authorized Ridley Dealer who perform warranty checkup before sale what is confirmed with a proper receipt/invoice. Frame must be registered within one month after purchase at at Producer website www.ridley-bikes.com/register-ridley
In case of complete bicycles components are warranted separate by specific producer (usually for 2 years).
Future service, maintenance and repairs should be performed according to your knowledge and skills by yourself or by an Authorized Ridley Dealer, or in case of lack of a one in you area at preferred professional bicycle workshop.
Please contact us if any further instructions are needed.

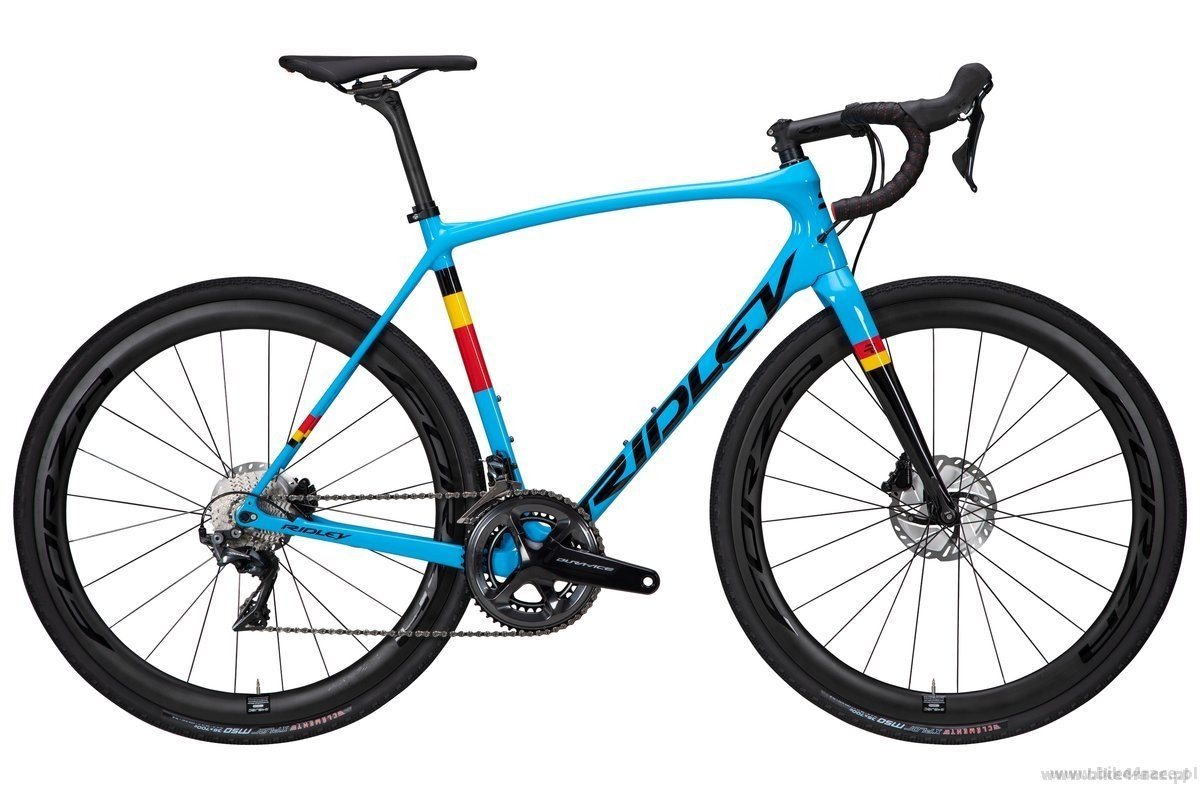

BICYCLE SPECIFICATION | |
| Frame: | Kanzo Speed, 30T-24T HM UD Carbon, TA 12x142mm |
| Frame material: | carbon |
| Frame weight (at size M): | 1040 g |
| Bicycle weight (at size M): | 9.5 kg |
| Fork: | Forza Oryx Disc Carbon, Hidden Fender Mounts, TA 12x100mm |
| Color: | KAS-01AS (Belgian Blue-Black), glossy |
| Headset: | FSA 1 1/8 x 1 1/2 integrated |
| Dual-Control levers: | Shimano GRX600 2x11s |
| Front derailleur: | Shimano 105 R7000 2s |
| Rear derailleur: | Shimano GRX810 11s |
| Crankset: | Shimano RS510 50/34 |
| BB: | Shimano |
| Cassette: | Shimano 105 R7000 11s 11-32 |
| Chain: | KMC X11 |
| Brakes: | Shimano GRX400 Hydraulic Disc, FlatMount |
| Wheelset: | Shimano RS171 DB |
| Tires: | WTB Byway TCS 700x34mm |
| Saddle: | Forza Stratos |
| Stem: | Forza Stratos |
| Handlebar: | Forza Stratos |
| Bar tape: | Forza |
| Seatpost: | Forza Stratos 27.2 mm/15mm offset |
| Saddle clamp: | Forza |
See also
| Size | Min. leg lenght | Max. leg lenght | Height |
|---|---|---|---|
| XXS | 67 cm | 79 cm | < 162 cm |
| XS | 79 cm | 83 cm | 162 - 170 cm |
| S | 83 cm | 87 cm | 170 - 178 cm |
| M | 87 cm | 91 cm | 178 - 186 cm |
| L | 91 cm | 95 cm | 186 - 194 cm |
| XL | 95 cm | 99 cm | > 194 cm |
Instrukcja mierzenia
Aby dokładnie ustalić rozmiar niezbędny do zamówienia roweru lub ramy gravel RIDLEY należy zmierzyć się i porównać wymiary swojego ciała z wymiarami podanymi w tabeli.
Pomiary wykonujemy taśmą centymetrową stojąc w pozycji wyprostowanej i swobodnie oddychając, najlepiej w stroju kolarskim lub bieliźnie.
- Długość nogi - mierzymy w linii prostej od kroku (górna płaszczyzna poziomicy lub innego przedmiotu) do podłoża stojąc bez obuwia ze stopami ustawionymi ok. 20 cm od siebie.
- Wzrost - mierzymy w linii prostej od wierzchołka głowy do podłoża stojąc bez obuwia, ze złączonymi stopami.
