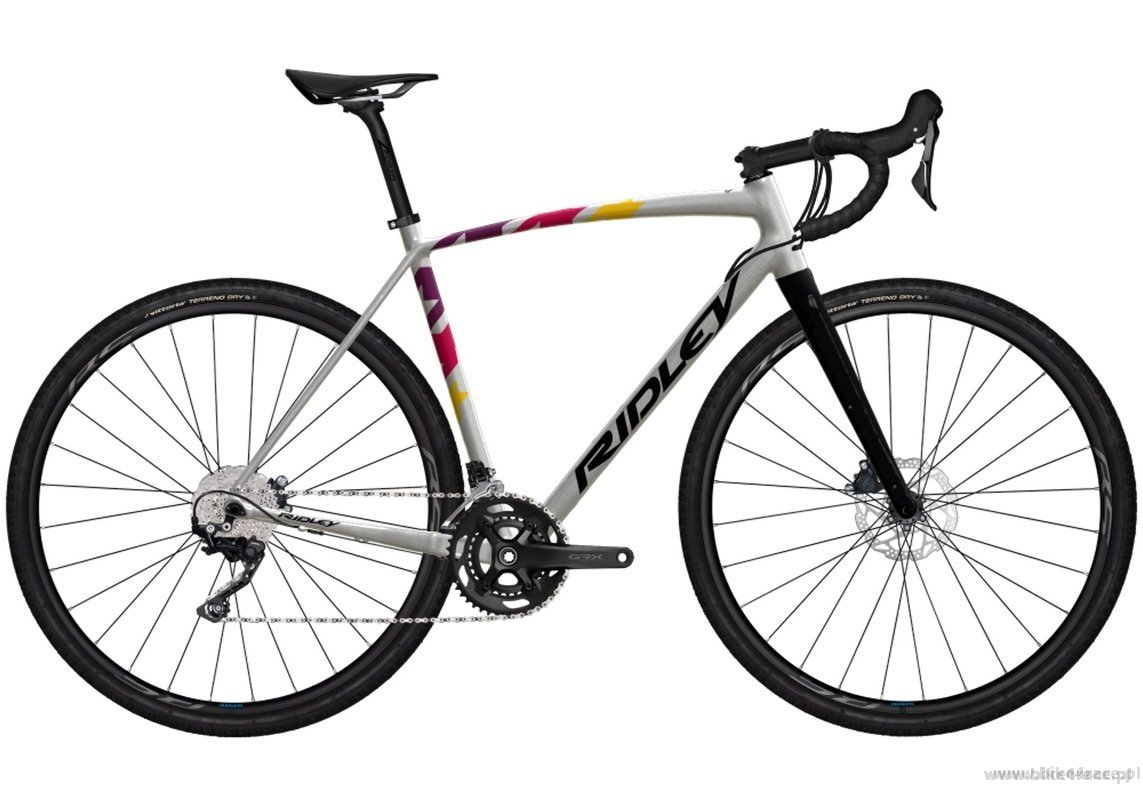

Gravel bicycle RIDLEY KANZO A - GRX400 2x10s - color KAA-03As (Silver Metallic-Honey Yellow-Soft Ruby Red-Purple-Black)
Click to zoom
New in

Gravel bicycle RIDLEY KANZO A - GRX400 2x10s - color KAA-03As (Silver Metallic-Honey Yellow-Soft Ruby Red-Purple-Black)

  • Is there a better combination than “discovering” and “cycling”? Kanzo A is an alloy gravel bike for adventurous riders that excellently combines both. With this bike "You Can Do It All!
List price1 907,00 €
1 767,00 €
/ piece gross
Color
Before we process the order with this product, the prepayment in the amount of 442,00 € may be required. Detailed information will be provided in the order summary, before its placement.
Availaible on request
Availaible on request
14 days for free returns
This product is not available in a stationary store
Safe shopping

*rzeczywista specyfikacja produktu może różnić się od przedstawionej na zdjęciu. Prosimy o zapoznanie się z dokładną specyfikacją poniżej.

Kanzo is a word that dates back to the times of the troubadours, who traveled widely and experienced all kinds of adventures. Is there a better combination than “discovering” and “cycling”? Kanzo A is an alloy gravel bike for adventurous riders that excellently combines both. You can master any terrain, at your own pace as this most vesatile bike can be a commuter setup with fenders during the week, it also allows you to discover gravel roads at the weekend, and every now and then you can put your bike packs on to go and explore the world. With this bike "You Can Do It All!

  • can fit 650B or 700C wheels, making it a very versatile frame platform
  • maximum tire clearance of 650x50 or 700x45
  • fender & rack mounts on frame and fork
  • 12mm TA in frame and fork
  • compatibile with flatmount disc brakes
KANZO A
XXS XS S M L XL Geometry-Road
A - MAX. SADDLE HEIGHT
745 775 805 835 865 895
B - SEAT TUBE, CENTER-TOP 450 480 510 540 570 600
C - TOP TUBE, HORIZONTAL 515 525 545 565 585 600
D - HEAD TUBE LENGTH 100 113 133 158 188 213
E - SEAT TUBE ANGLE 75,0 74,5 74,0 73,0 72,5 72,5
F - HEAD TUBE ANGLE 70,0 70,5 70,5 71,0 71,0 71,5
G - CHAINSTAY LENGTH 430 430 430 430 430 430
H - BB DROP 74 74 72 72 70 70
I - WHEELBASE 1016 1019 1029 1034 1056 1066
J - STANDOVER HEIGHT 733 759 784 810 839 868
S - STACK 528 542 559 584 611 636
R - REACH 374 377 380 386 392 399
To download
Brand
BICYCLE SPECIFICATION
Frame
Kanzo A, Triple Butted Hydroformed 6061-T6 Aluminium, TA 12x142mm
Frame material
aluminium
Frame weight (at size M)
1620g
Bicycle weight (at size M)
10.3 kg
Fork
Forza Oryx Disc, Carbon-Aluminium Steerer, TA 12x100mm
Color
KAA-03As (Silver Metallic-Honey Yellow-Soft Ruby Red-Purple-Black), glossy
Headset
FSA 1 1/8 x 1 1/2 integrated
Dual-Control levers
Shimano GRX400 2x10s
Front derailleur
Shimano GRX400 2s
Rear derailleur
Shimano GRX400 10s
Crankset
Shimano GRX600 46/30
BB
Shimano BSA 68mm
Cassette
Shimano HG50 10s 11-36
Chain
KMC X10
Brakes
Shimano GRX400 Hydraulic Disc, FlatMount
Wheelset
Shimano RS171 DB
Tires
Vittoria Terreno Dry TLR 700x38c
Saddle
Selle Italia Model X
Stem
Forza Stratos
Handlebar
Forza Stratos Gravel 4°
Bar tape
Forza
Seatpost
Forza Stratos 27.2mm/15mm offset
Saddle clamp
Forza
RIDLEY [5 years]

All RIDLEY frames are warranted by Producer against manufacturing defects in material and/or workmanship for 5 years of the original owner if the frame is purchased from an Authorized Ridley Dealer who perform warranty checkup before sale what is confirmed with a proper receipt/invoice. Frame must be registered within one month after purchase at at Producer website www.ridley-bikes.com/register-ridley
In case of complete bicycles components are warranted separate by specific producer (usually for 2 years).

Future service, maintenance and repairs should be performed according to your knowledge and skills by yourself or by an Authorized Ridley Dealer, or in case of lack of a one in you area at preferred professional bicycle workshop.

Please contact us if any further instructions are needed.

Ask a question
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with privacy policy. By submitting data, you accept privacy policy provisions.
Write your opinion
Your opinion:
5/5
Add your own product photo:
SizeMin. leg lenghtMax. leg lenghtHeight
XXS67 cm79 cm< 162 cm
XS79 cm83 cm162 - 170 cm
S83 cm87 cm170 - 178 cm
M87 cm91 cm178 - 186 cm
L91 cm95 cm186 - 194 cm
XL95 cm99 cm> 194 cm

Instrukcja mierzenia

Aby dokładnie ustalić rozmiar niezbędny do zamówienia roweru lub ramy szosowej RIDLEY należy zmierzyć się i porównać wymiary swojego ciała z wymiarami podanymi w tabeli.

Pomiary wykonujemy taśmą centymetrową stojąc w pozycji wyprostowanej i swobodnie oddychając, najlepiej w stroju kolarskim lub bieliźnie.

  1. Długość nogi - mierzymy w linii prostej od kroku (górna płaszczyzna poziomicy lub innego przedmiotu) do podłoża stojąc bez obuwia ze stopami ustawionymi ok. 20 cm od siebie.
  2. Wzrost - mierzymy w linii prostej od wierzchołka głowy do podłoża stojąc bez obuwia, ze złączonymi stopami.
