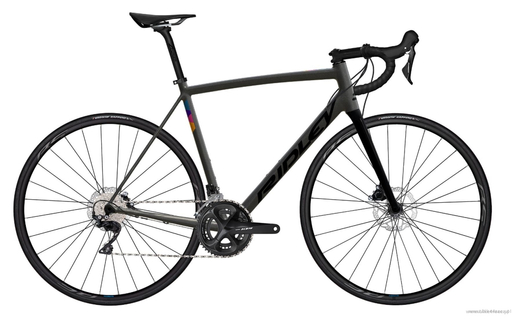

Road frameset RIDLEY FENIX SLA DISC - color FAD-02Bs (Anthracite Metallic-Black-Dark Yellow)
New in

Road frameset RIDLEY FENIX SLA DISC - color FAD-02Bs (Anthracite Metallic-Black-Dark Yellow)

  • The Fenix SLA Disc is the quintessential “all-round” bike. It offers the perfect blend between performance, weight, strength, stiffness and especially comfort for long days in the saddle.
1 256,00 €
incl. VAT / piece
Lowest price in 30 days before discount: / piece
Regular price: / piece
Color
Before we process the order with this product, the prepayment in the amount of 314,00 €. may be required. Detailed information will be provided in the order summary, before its placement.
Availaible on request
Availaible on request
14 days for free returns
This product is not available in a stationary store
Safe shopping

*rzeczywista specyfikacja produktu może różnić się od przedstawionej na zdjęciu. Prosimy o zapoznanie się z dokładną specyfikacją poniżej.

The Fenix SLA Disc is the quintessential “all-round” bike. It offers the perfect blend between performance, weight, strength, stiffness and especially comfort for long days in the saddle. While the Fenix expertly handles top competition, it is also perfectly suited for the part-time racer or recreational rider in terms of performance, comfort and cost. It's the perfect bike for cyclists who are looking for a super strong impact-resistant frame, thanks to the alloy, diamond shaped down tube. Our knowledge of our lightweight models has been integrated in this bike, resulting in a lighter disc frame.

  • 6061-6066 triple butted alloy tubes improves the weight and handling
  • oversized diamond shaped sharp edge tubes creates reinforced edges for a robust frame with increased impact-resistance
  • straight carbon fork provides superb handling conditions when cornering
  • internal cabling also saves some extra weight and offers the bike a clean look
  • compatibile with flatmount disc brakes
  • availaible at sizes XXS-XL
FENIX SLA DISC
XXS XS S M L XL Geometry-Road
A - MAX. SADDLE HEIGHT
740 770 800 835 860 890
B - SEAT TUBE, CENTER-TOP 450 480 510 540 570 600
C - TOP TUBE, HORIZONTAL 515 525 545 565 585 600
D - HEAD TUBE LENGTH 107 127 142 172 202 220
E - SEAT TUBE ANGLE 75,0 74,0 73,5 73,0 72,5 72,5
F - HEAD TUBE ANGLE 71,8 72,0 73,0 73,5 73,5 74,0
G - CHAINSTAY LENGTH 410 410 410 410 413 413
H - BB DROP 68 68 68 66 66 63
I - WHEELBASE 973 973 982 992 1010 1019
J - STANDOVER HEIGHT 732 757 778 810 841 868
S - STACK 507 527 543 573 599 625
R - REACH 379 374 384 390 396 403



Brand
Series
FRAMESET SPECIFICATIONS (SET INCLUDES):
Frame
Fenix SLA Disc, Tripple Butted Hydroformed Superlight 6061 Aluminium, TA 12x142mm
Frame material
aluminium
Frame weight (at size M)
1560 g
Fork
Fenix SLA Disc, 30T-24T HM UD Carbon, TA 12x100mm
Color
FAD-02Bs (Anthracite Metallic-Black-Dark Yellow), glossy
Headset
FSA 1 1/8 x 1 1/2 integrated
Wheel axles
F TA12x100
R TA12x142
Saddle clamp
Forza
COMPATIBILITY:
Front derailleur
Clamp-On type 31.8mm
BB
BSA standard 68mm (English)
Brakes
F140/160mm FlatMount
R140/160mm FlatMount
Seatpost
27.2mm
To download
RIDLEY [5 years]

All RIDLEY frames are warranted by Producer against manufacturing defects in material and/or workmanship for 5 years of the original owner if the frame is purchased from an Authorized Ridley Dealer who perform warranty checkup before sale what is confirmed with a proper receipt/invoice. Frame must be registered within one month after purchase at at Producer website www.ridley-bikes.com/register-ridley
In case of complete bicycles components are warranted separate by specific producer (usually for 2 years).

Future service, maintenance and repairs should be performed according to your knowledge and skills by yourself or by an Authorized Ridley Dealer, or in case of lack of a one in you area at preferred professional bicycle workshop.

Please contact us if any further instructions are needed.

Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
Ask a question
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Write your opinion
Your opinion:
5/5
Add your own product photo:
SizeMin. leg lenghtMax. leg lenghtHeight
XXS67 cm79 cm< 162 cm
XS79 cm83 cm162 - 170 cm
S83 cm87 cm170 - 178 cm
M87 cm91 cm178 - 186 cm
L91 cm95 cm186 - 194 cm
XL95 cm99 cm> 194 cm

Instrukcja mierzenia

Aby dokładnie ustalić rozmiar niezbędny do zamówienia roweru lub ramy szosowej RIDLEY należy zmierzyć się i porównać wymiary swojego ciała z wymiarami podanymi w tabeli.

Pomiary wykonujemy taśmą centymetrową stojąc w pozycji wyprostowanej i swobodnie oddychając, najlepiej w stroju kolarskim lub bieliźnie.

  1. Długość nogi - mierzymy w linii prostej od kroku (górna płaszczyzna poziomicy lub innego przedmiotu) do podłoża stojąc bez obuwia ze stopami ustawionymi ok. 20 cm od siebie.
  2. Wzrost - mierzymy w linii prostej od wierzchołka głowy do podłoża stojąc bez obuwia, ze złączonymi stopami.
