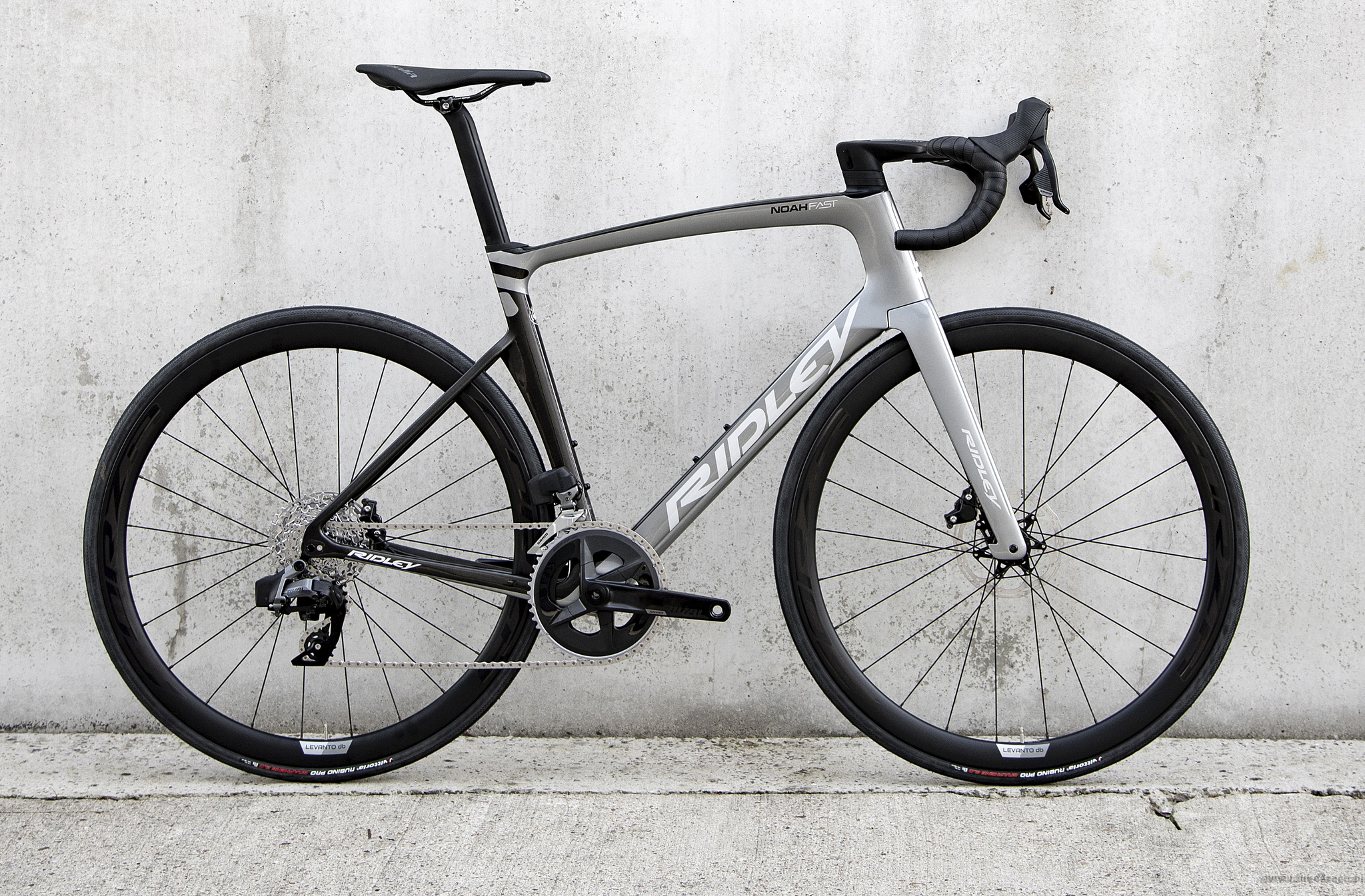

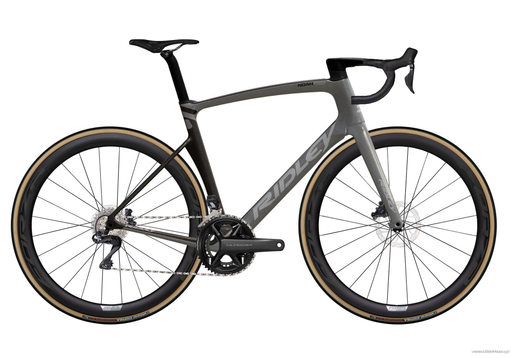

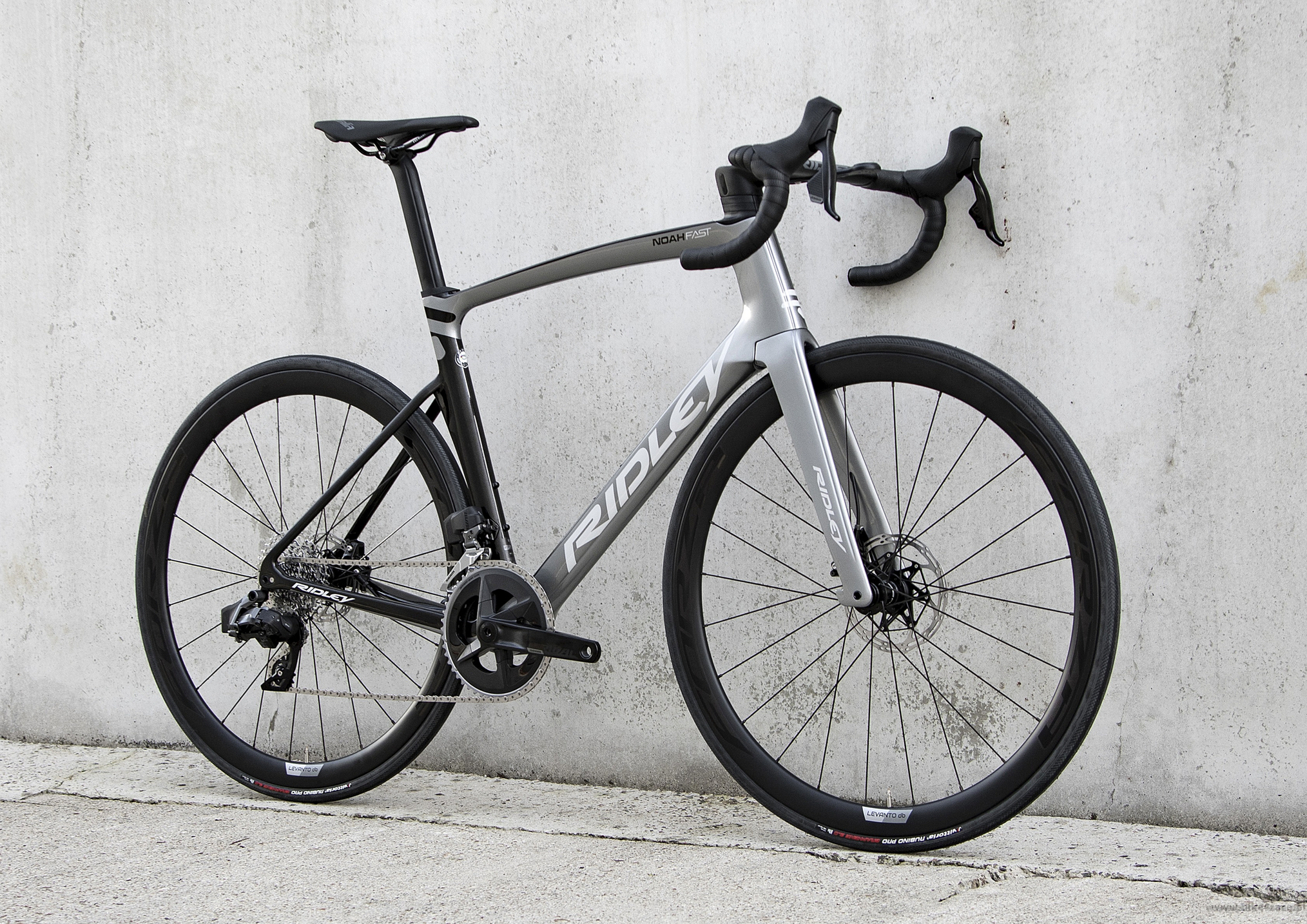

Road bicycle RIDLEY NOAH FAST DISC - Ultegra Di2 2x12s - color NFD-03Bs (Black Metallic-Empress Grey Metallic-Pale Slate Grey)
- The Noah FAST Disc is our top-level aero model and was built from scratch with every feature rebuilt.
*rzeczywista specyfikacja produktu może różnić się od przedstawionej na zdjęciu. Prosimy o zapoznanie się z dokładną specyfikacją poniżej.
The Noah FAST Disc is our top-level aero model and was built from scratch with every feature rebuilt. This powerhouse has no rival in cutting through wind thanks to component integrations of the fork, handlebar, seat post clamp, thru axles and cables, next to F-Surface Plus, F-Wings and spacer profile updates. On this bike every rider is able to find his perfect position accurate to 1mm as result of our whole bike approach, where every part needs to fit together perfectly.

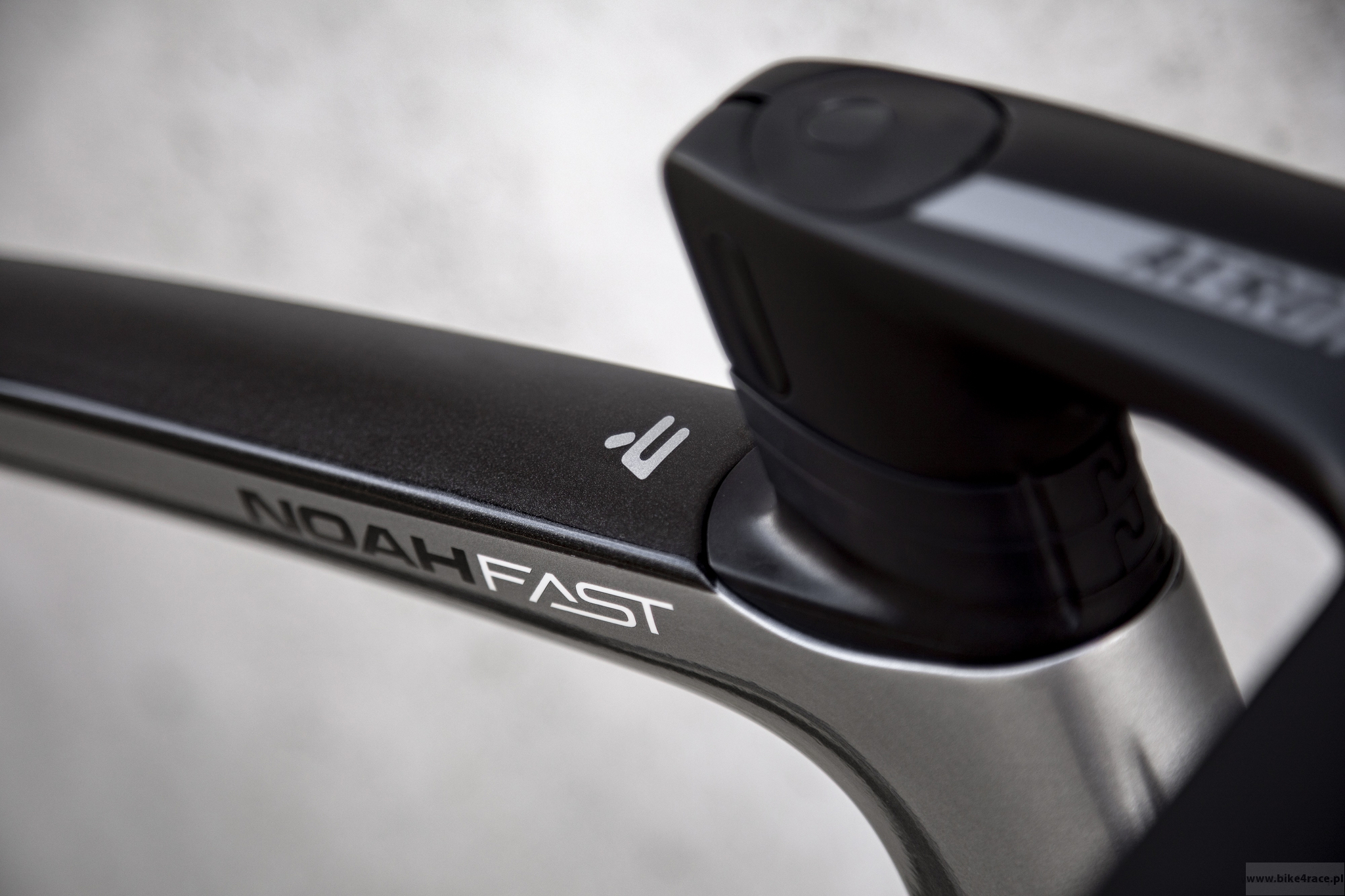

- F-Steerer ingeniously allows for fully internal cabling
- F-Surface Plus is the application of a textured surface in strategic locations for decreased wind drag
- F-Tubing is our droplet-shaped tubing which significantly minimizes wind drag

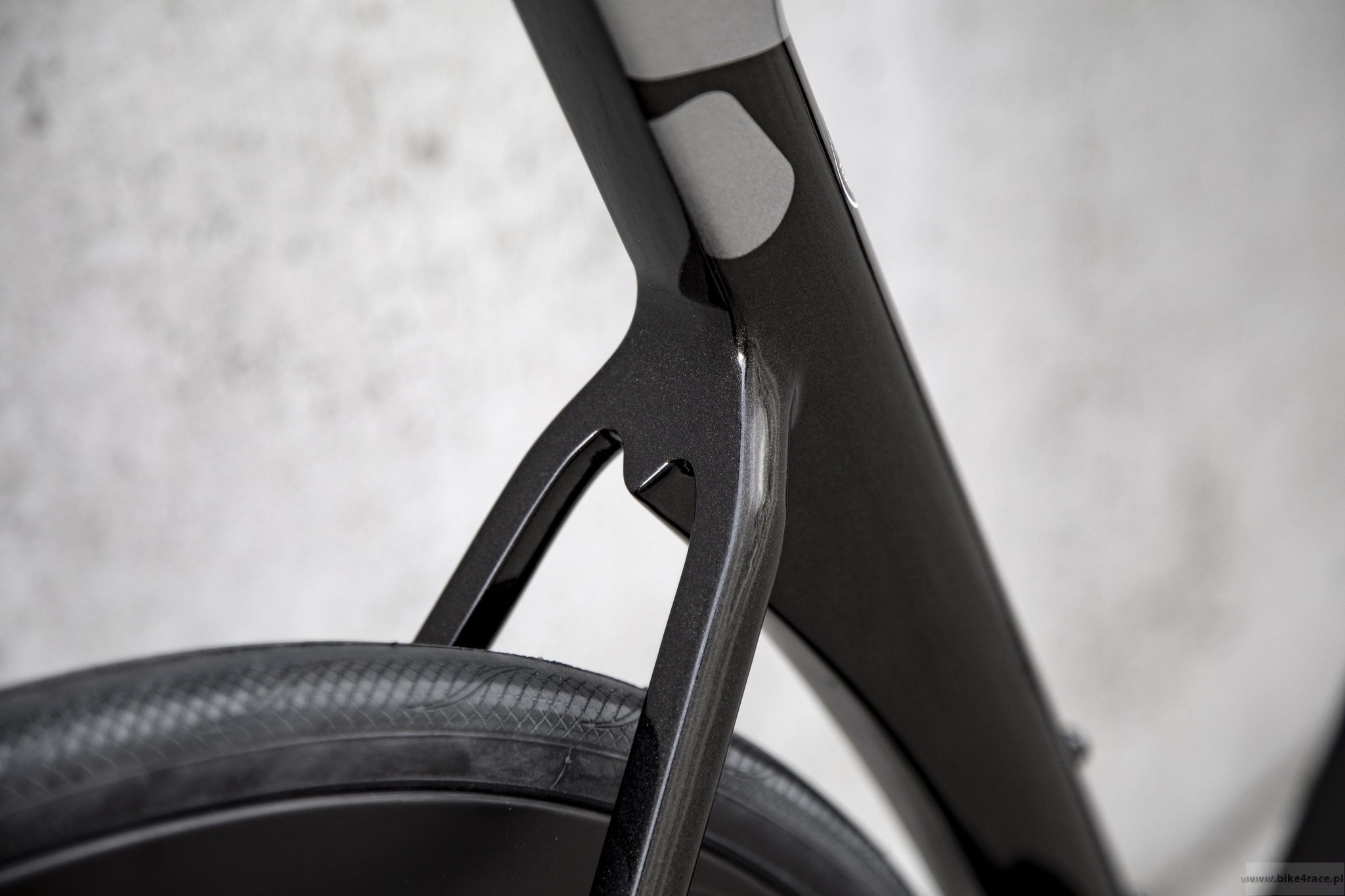

- F-Wings reduces drag by drawing turbulent air away from spokes
- compatible with electronic and mechanical shifting

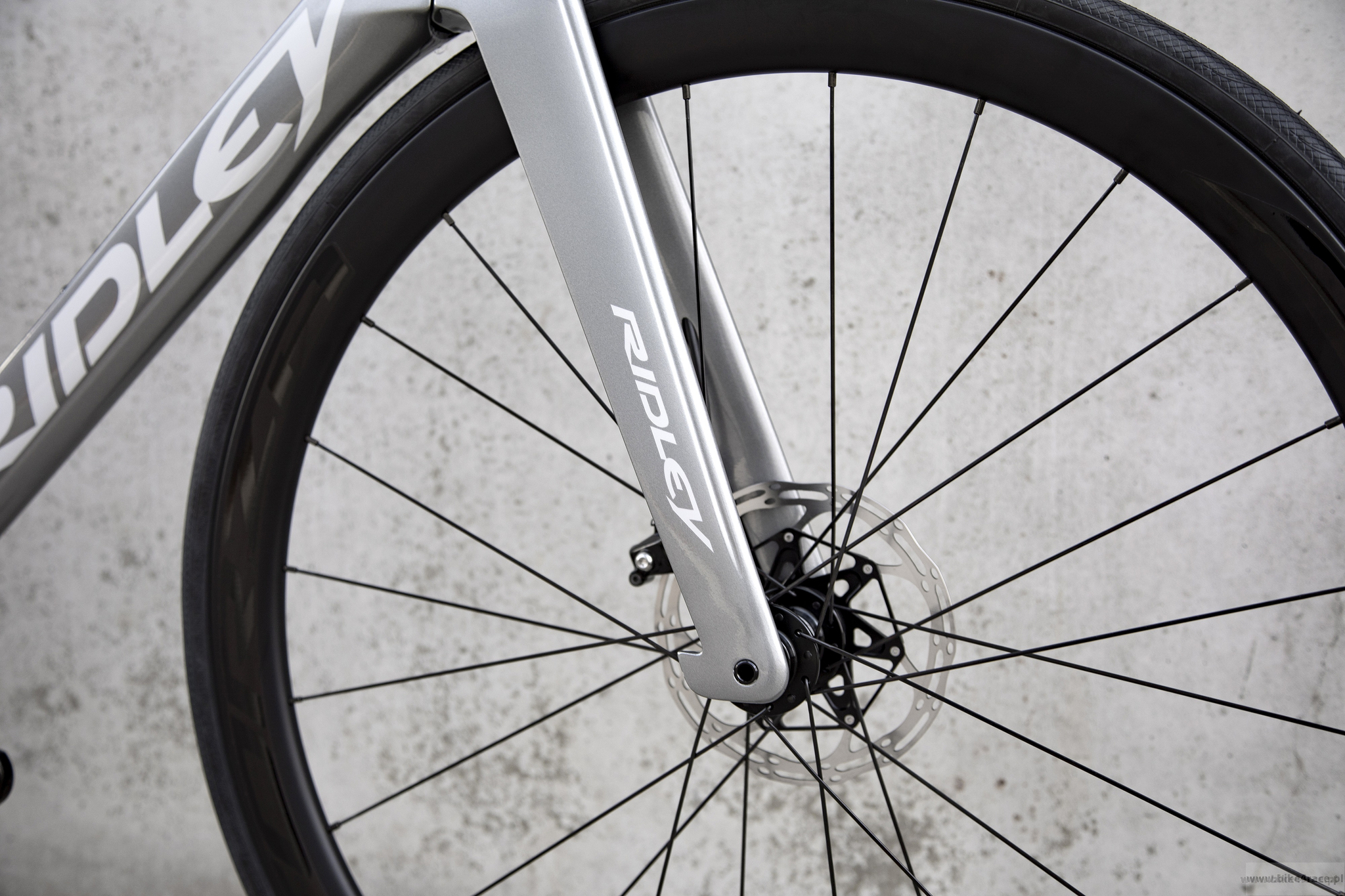

- compatibile with disc brakes
NOAH FAST DISC |
XXS | XS | S | M | L | XL | |
---|---|---|---|---|---|---|---|
A - MAX. SADDLE HEIGHT |
720 | 745 | 770 | 795 | 820 | 845 | |
B - SEAT TUBE, CENTER-TOP | 430 | 455 | 480 | 505 | 530 | 555 | |
C - TOP TUBE, HORIZONTAL | 512 | 526 | 545 | 565 | 587 | 603 | |
D - HEAD TUBE LENGTH | 95 | 117 | 140 | 164 | 194 | 218 | |
E - SEAT TUBE ANGLE | 74,5 | 74,0 | 73,5 | 73,0 | 72,5 | 72,5 | |
F - HEAD TUBE ANGLE | 71,5 | 72,0 | 73,0 | 73,5 | 73,5 | 74,0 | |
G - CHAINSTAY LENGTH | 405 | 405 | 405 | 405 | 408 | 408 | |
H - BB DROP | 68 | 68 | 66 | 66 | 63 | 63 | |
I - WHEELBASE | 969 | 975 | 977 | 987 | 1007 | 1017 | |
J - STANDOVER HEIGHT | 725 | 754 | 785 | 811 | 838 | 864 | |
S - STACK | 493 | 516 | 541 | 565 | 591 | 616 | |
R - REACH | 375 | 378 | 385 | 393 | 401 | 409 |
All RIDLEY frames are warranted by Producer against manufacturing defects in material and/or workmanship for 5 years of the original owner if the frame is purchased from an Authorized Ridley Dealer who perform warranty checkup before sale what is confirmed with a proper receipt/invoice. Frame must be registered within one month after purchase at at Producer website www.ridley-bikes.com/register-ridley
In case of complete bicycles components are warranted separate by specific producer (usually for 2 years).
Future service, maintenance and repairs should be performed according to your knowledge and skills by yourself or by an Authorized Ridley Dealer, or in case of lack of a one in you area at preferred professional bicycle workshop.
Please contact us if any further instructions are needed.
Size | Min. leg lenght | Max. leg lenght | Height |
---|---|---|---|
XXS | 67 cm | 79 cm | < 162 cm |
XS | 79 cm | 83 cm | 162 - 170 cm |
S | 83 cm | 87 cm | 170 - 178 cm |
M | 87 cm | 91 cm | 178 - 186 cm |
L | 91 cm | 95 cm | 186 - 194 cm |
XL | 95 cm | 99 cm | > 194 cm |
Instrukcja mierzenia
Aby dokładnie ustalić rozmiar niezbędny do zamówienia roweru lub ramy szosowej RIDLEY należy zmierzyć się i porównać wymiary swojego ciała z wymiarami podanymi w tabeli.
Pomiary wykonujemy taśmą centymetrową stojąc w pozycji wyprostowanej i swobodnie oddychając, najlepiej w stroju kolarskim lub bieliźnie.
- Długość nogi - mierzymy w linii prostej od kroku (górna płaszczyzna poziomicy lub innego przedmiotu) do podłoża stojąc bez obuwia ze stopami ustawionymi ok. 20 cm od siebie.
- Wzrost - mierzymy w linii prostej od wierzchołka głowy do podłoża stojąc bez obuwia, ze złączonymi stopami.
