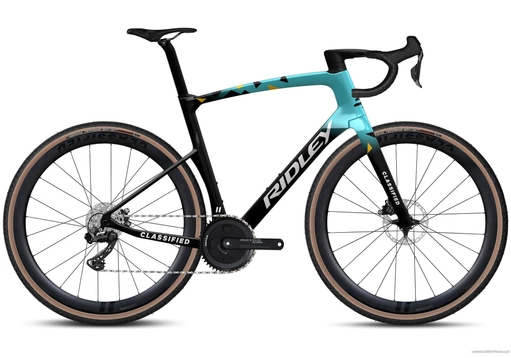

Gravel bicycle RIDLEY KANZO FAST - GRX800 Di2 Classified 1x11s - color D-1068R (Black-Blue)
- The Kanzo Fast gravel bike is lightning fast on any terrain. No gravel bike is as responsive. It's perfect, aerodynamic gravel bike to win gravel races. "It's The Fastest Way To Escape!
*rzeczywista specyfikacja produktu może różnić się od przedstawionej na zdjęciu. Prosimy o zapoznanie się z dokładną specyfikacją poniżej.
The Kanzo Fast gravel bike is lightning fast on any terrain. It's effective power transfer helps you convert every single watt into maximum speed. No gravel bike is as responsive. It's also expert at cutting through wind while keeping you comfortable to ensure that you can confidently go the distance. Ridley engineers spent hours in the wind tunnel and on gravel roads for further development and testing. What we created in the end was the perfect, aerodynamic gravel bike to win gravel races. "It's The Fastest Way To Escape!
- F-Steerer ingeniously allows for fully internal cabling
- F-Tubing is our droplet-shaped tubing which significantly minimizes wind drag
- F-Wings reduces drag by drawing turbulent air away from spokes
- compatible with electronic and mechanical 1x shifting
- maximum tire clearance of 700x42 and fender mounts on frame and fork
- the flexzones in the rearstays offer extra comfort by filtering the vibrations from all the different roadsurfaces you will ride
- all cables run full internally through the frame which avoids mud and water to ruin your shifting performance
- 12mm TA in frame and fork
- compatibile with flatmount disc brakes
KANZO FAST |
XS | S | M | L | XL | |
---|---|---|---|---|---|---|
A - MAX. SADDLE HEIGHT |
760 | 785 | 810 | 835 | 860 | |
B - SEAT TUBE, CENTER-TOP | 470 | 495 | 520 | 545 | 570 | |
C - TOP TUBE, HORIZONTAL | 522 | 547 | 565 | 587 | 601 | |
D - HEAD TUBE LENGTH | 115 | 144 | 168 | 197 | 221 | |
E - SEAT TUBE ANGLE | 74,5 | 73,5 | 73,0 | 72,5 | 73,0 | |
F - HEAD TUBE ANGLE | 71,0 | 71,0 | 71,5 | 71,5 | 72,0 | |
G - CHAINSTAY LENGTH | 425 | 425 | 425 | 425 | 425 | |
H - BB DROP | 74 | 72 | 72 | 70 | 70 | |
I - WHEELBASE | 1001 | 1017 | 1026 | 1044 | 1053 | |
J - STANDOVER HEIGHT | 768 | 794 | 819 | 844 | 869 | |
S - STACK | 537 | 563 | 587 | 613 | 638 | |
R - REACH | 372 | 380 | 385 | 393 | 400 |
All RIDLEY frames are warranted by Producer against manufacturing defects in material and/or workmanship for 5 years of the original owner if the frame is purchased from an Authorized Ridley Dealer who perform warranty checkup before sale what is confirmed with a proper receipt/invoice. Frame must be registered within one month after purchase at at Producer website www.ridley-bikes.com/register-ridley
In case of complete bicycles components are warranted separate by specific producer (usually for 2 years).
Future service, maintenance and repairs should be performed according to your knowledge and skills by yourself or by an Authorized Ridley Dealer, or in case of lack of a one in you area at preferred professional bicycle workshop.
Please contact us if any further instructions are needed.
Size | Min. leg lenght | Max. leg lenght | Height |
---|---|---|---|
XS | 79 cm | 83 cm | 162 - 170 cm |
S | 83 cm | 87 cm | 170 - 178 cm |
M | 87 cm | 91 cm | 178 - 186 cm |
L | 91 cm | 95 cm | 186 - 194 cm |
XL | 95 cm | 99 cm | > 194 cm |
Instrukcja mierzenia
Aby dokładnie ustalić rozmiar niezbędny do zamówienia roweru lub ramy szosowej RIDLEY należy zmierzyć się i porównać wymiary swojego ciała z wymiarami podanymi w tabeli.
Pomiary wykonujemy taśmą centymetrową stojąc w pozycji wyprostowanej i swobodnie oddychając, najlepiej w stroju kolarskim lub bieliźnie.
- Długość nogi - mierzymy w linii prostej od kroku (górna płaszczyzna poziomicy lub innego przedmiotu) do podłoża stojąc bez obuwia ze stopami ustawionymi ok. 20 cm od siebie.
- Wzrost - mierzymy w linii prostej od wierzchołka głowy do podłoża stojąc bez obuwia, ze złączonymi stopami.
