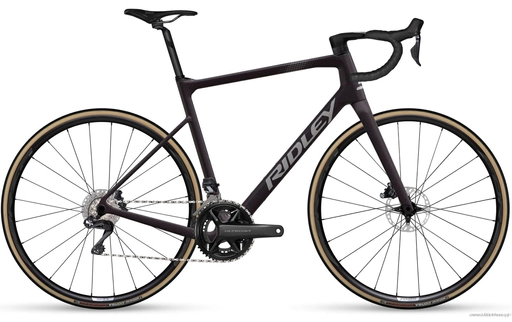

Bicycle RIDLEY GRIFN - 105 2x12s - color GRC-02Cm (Dark Plum Metallic-Autumn Grey)
New in

Bicycle RIDLEY GRIFN - 105 2x12s - color GRC-02Cm (Dark Plum Metallic-Autumn Grey)

  • Meet the Grifn: the allroad bike that’s fast and capable on all kinds of surfaces: from smooth tarmac all the way to dirt roads. This bike is carefully designed for riders searching for that one bike that can do it all.
3 139,00 €
incl. VAT / piece
Lowest price in 30 days before discount: / piece
Regular price: / piece
List price:3 302,00 €
Color
Before we process the order with this product, the prepayment in the amount of 785,00 €. may be required. Detailed information will be provided in the order summary, before its placement.
Availaible on request
Availaible on request
14 days for free returns
This product is not available in a stationary store
Safe shopping

*rzeczywista specyfikacja produktu może różnić się od przedstawionej na zdjęciu. Prosimy o zapoznanie się z dokładną specyfikacją poniżej.

Meet the Grifn: the allroad bike that’s fast and capable on all kinds of surfaces: from smooth tarmac all the way to dirt roads. This bike is carefully designed for riders searching for that one bike that can do it all. The Grifn is made for riding hard and long while making memories and discovering new roads. It’s made to go the extra mile. Ridley combined the speed of a thoroughbred road bike with the comfort of a gravel bike in creating the Grifn.

The name Grifn refers to the mythical beast griffin, a fabled animal with the body of a lion and the head and wings of an eagle. This hybrid creature symbolizes the ruling over two realms: the earth and the sky. Because of the bike’s versatility, Ridley’s Grifn is also capable of ruling over two realms: road and gravel. As a Grifn rider you’ll reign both tarmac and dirt roads. Seeing that you can go any direction with the Grifn, this bike can be built as both road bike and gravel bike. It’s completely customizable to fit the rider’s wishes. This way the Grifn is perfect for road and gravel riding, commuting and long distance adventures.

The surface won’t be limiting the rider anymore. The Grifn is the perfect match for riders who don’t want to have to choose between road and gravel. Whether you’re in search of a gravel bike for exploring backcountry roads and enjoying the most scenic and car-free roads or want to occasionally take your road bike off the beaten path to break the habit, the Grifn is the right bike for it. With the Grifn, Ridley is breaking with the N+1 rule of bike ownership.

  • specific all-road geometry adapted to both road and gravel riding designed using Ridley’s KOG philosophy (Kanzo Optimized Geometry)
  • fast and comfortable road bike ready to hit the offroad with maximum tire clearance of 38mm
  • possibility to go to 40mm tires if you run a 1x drivetrain
  • all cables run full internally through the frame and cockpit which avoids mud and water to ruin your shifting performance
  • integrated, internal dynamo and rear light cable routing
  • bikepacking optimized frame mount with hidden top tube mounts & other for mudguards, bottlecages, bags, etc.
  • UDH - Universal Derailleur Hanger
  • 12mm TA in frame and fork
  • flat-mount disc brakes ensure you have control of the bike in all conditions – both on and offroad

GRIFN XS S M L XL Geometry-Road
A - MAX. SADDLE HEIGHT 760 790 810 835 860
B - SEAT TUBE, CENTER-TOP 470 500 520 545 570
C - TOP TUBE, HORIZONTAL 525 545 565 585 605
D - HEAD TUBE LENGTH 115 140 165 195 215
E - SEAT TUBE ANGLE 74.5 74.0 73.5 73.5 73.0
F - HEAD TUBE ANGLE 71.5 72.0 72.0 72.0 72.0
G - CHAINSTAY LENGTH 420 420 420 420 420
H - BB DROP 75 73 73 71 71
I - WHEELBASE 993 1005 1021 1043 1058
J - STANDOVER HEIGHT 759 784 810 839 868
S - STACK 540 563 587 614 633
R - REACH 375 383 391 403 412



Brand
BICYCLE SPECIFICATION
Frame
Grifn, HM UD Carbon, UDH hanger, integrated fender, packing mounts & dynamo routing, TA 12x142mm
Frame material
carbon
Frame weight (at size M)
993 g
Bicycle weight (at size M)
9.5 kg
Fork
Forza Allroad Carbon, F-Steerer, integrated fender, packing mounts & dynamo routing, TA 12x100mm
Color
GRC-02Cm (Dark Plum Metallic-Autumn Grey), matt
Headset
FSA 1 1/8 x 1 1/2 integrated
Dual-Control levers
Shimano 105 R7120 2x12s
Front derailleur
Shimano 105 R7100 2s
Rear derailleur
Shimano 105 R7100 12s
Crankset
Shimano 105 R7100 50/34
BB
Shimano BB86
Cassette
Shimano 105 R7100 12s 11-34
Chain
KMC X12
Brakes
Shimano 105 R7170 Hydraulic Disc, FlatMount
Wheelset
Forza Norte Gravel TLR
Tires
Vittoria Zaffiro Pro 700x32c
Handlebar
Forza Cirrus
Stem
Forza Stratos
Bar tape
Forza
Seatpost
Forza Cirrus 27.2mm Carbon-Alu/10mm offset
Saddle
Selle Italia Model X
Saddle clamp
integrated
To download
RIDLEY [5 years]

All RIDLEY frames are warranted by Producer against manufacturing defects in material and/or workmanship for 5 years of the original owner if the frame is purchased from an Authorized Ridley Dealer who perform warranty checkup before sale what is confirmed with a proper receipt/invoice. Frame must be registered within one month after purchase at at Producer website www.ridley-bikes.com/register-ridley
In case of complete bicycles components are warranted separate by specific producer (usually for 2 years).

Future service, maintenance and repairs should be performed according to your knowledge and skills by yourself or by an Authorized Ridley Dealer, or in case of lack of a one in you area at preferred professional bicycle workshop.

Please contact us if any further instructions are needed.

Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
Ask a question
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Write your opinion
Your opinion:
5/5
Add your own product photo:
SizeMin. leg lenghtMax. leg lenghtHeight
XS79 cm83 cm162 - 170 cm
S83 cm87 cm170 - 178 cm
M87 cm91 cm178 - 186 cm
L91 cm95 cm186 - 194 cm
XL95 cm99 cm> 194 cm

Instrukcja mierzenia

Aby dokładnie ustalić rozmiar niezbędny do zamówienia roweru lub ramy gravel RIDLEY należy zmierzyć się i porównać wymiary swojego ciała z wymiarami podanymi w tabeli.

Pomiary wykonujemy taśmą centymetrową stojąc w pozycji wyprostowanej i swobodnie oddychając, najlepiej w stroju kolarskim lub bieliźnie.

  1. Długość nogi - mierzymy w linii prostej od kroku (górna płaszczyzna poziomicy lub innego przedmiotu) do podłoża stojąc bez obuwia ze stopami ustawionymi ok. 20 cm od siebie.
  2. Wzrost - mierzymy w linii prostej od wierzchołka głowy do podłoża stojąc bez obuwia, ze złączonymi stopami.
