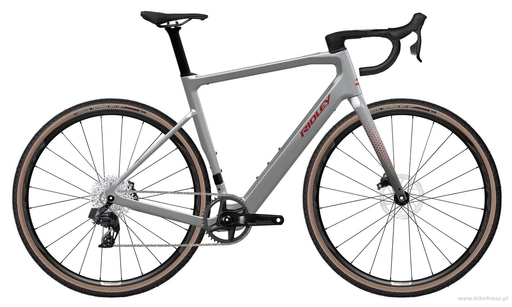

Bicycle RIDLEY E-GRIFN - Rival AXS XPLR 1x12s - color EGC-01As (Battleship Grey-Candy Red Metallic)
- With the E-Grifn, you go further, longer, and higher than ever before. We chose the Mahle X20 drive unit for its very natural riding feel.
*rzeczywista specyfikacja produktu może różnić się od przedstawionej na zdjęciu. Prosimy o zapoznanie się z dokładną specyfikacją poniżej.
With the E-Grifn, you go further, longer, and higher than ever before. We chose the Mahle X20 drive unit for its very natural riding feel.
A distinctive feature of this e-bike is the choice of the Mahle X20 drive unit. This is a compact and proven system that makes the impossible possible. The assistance is proportional to the force you apply to the pedals, achieved through the use of a torque sensor in the bottom bracket communicating with the software. You feel like you're always riding with a delightful breeze at your back, making every journey feel like a sporty endeavor.
An advantage of the X20 motor is that it runs virtually without additional mechanical resistance above the limit of 25 kilometers per hour. The power delivery of the system gradually fades out, ensuring a very fluid bike experience. This also contributes to the natural feeling on the bike. Moreover, you can control the motor with your smartphone via the Mahle app and customize it to your preferences. The system even adapts to your riding behavior. With Mahle X20, you have three levels of bike assistance tailored specifically for the Grifn by our product managers in collaboration with Mahle. This 'custom mapping' is a typical example of our eternal quest for perfection.
The geometry of the E-Grifn is the same as that of the Grifn RS, with a removable front derailleur clamp, space for tires up to 42 millimeters, and the UDH hanger. The battery is neatly integrated into the frame, maintaining the sporty look of the E-Grifn.
| E-GRIFN | XS | S | M | L | XL |  |
|---|---|---|---|---|---|---|
| A - MAX. SADDLE HEIGHT | 760 | 790 | 810 | 835 | 860 | |
| B - SEAT TUBE, CENTER-TOP | 470 | 500 | 520 | 545 | 570 | |
| C - TOP TUBE, HORIZONTAL | 525 | 545 | 565 | 585 | 605 | |
| D - HEAD TUBE LENGTH | 115 | 140 | 165 | 195 | 215 | |
| E - SEAT TUBE ANGLE | 74.5 | 74.0 | 73.5 | 73.5 | 73.0 | |
| F - HEAD TUBE ANGLE | 71.5 | 72.0 | 72.0 | 72.0 | 72.0 | |
| G - CHAINSTAY LENGTH | 420 | 420 | 420 | 420 | 420 | |
| H - BB DROP | 75 | 73 | 73 | 71 | 71 | |
| I - WHEELBASE | 993 | 1005 | 1021 | 1043 | 1058 | |
| J - STANDOVER HEIGHT | 759 | 784 | 810 | 839 | 868 | |
| S - STACK | 540 | 563 | 587 | 614 | 633 | |
| R - REACH | 375 | 383 | 391 | 403 | 412 |
All RIDLEY frames are warranted by Producer against manufacturing defects in material and/or workmanship for 5 years of the original owner if the frame is purchased from an Authorized Ridley Dealer who perform warranty checkup before sale what is confirmed with a proper receipt/invoice. Frame must be registered within one month after purchase at at Producer website www.ridley-bikes.com/register-ridley
In case of complete bicycles components are warranted separate by specific producer (usually for 2 years).
Future service, maintenance and repairs should be performed according to your knowledge and skills by yourself or by an Authorized Ridley Dealer, or in case of lack of a one in you area at preferred professional bicycle workshop.
Please contact us if any further instructions are needed.
| Size | Min. leg lenght | Max. leg lenght | Height |
|---|---|---|---|
| XS | 79 cm | 83 cm | 162 - 170 cm |
| S | 83 cm | 87 cm | 170 - 178 cm |
| M | 87 cm | 91 cm | 178 - 186 cm |
| L | 91 cm | 95 cm | 186 - 194 cm |
| XL | 95 cm | 99 cm | > 194 cm |
Instrukcja mierzenia
Aby dokładnie ustalić rozmiar niezbędny do zamówienia roweru lub ramy gravel RIDLEY należy zmierzyć się i porównać wymiary swojego ciała z wymiarami podanymi w tabeli.
Pomiary wykonujemy taśmą centymetrową stojąc w pozycji wyprostowanej i swobodnie oddychając, najlepiej w stroju kolarskim lub bieliźnie.
- Długość nogi - mierzymy w linii prostej od kroku (górna płaszczyzna poziomicy lub innego przedmiotu) do podłoża stojąc bez obuwia ze stopami ustawionymi ok. 20 cm od siebie.
- Wzrost - mierzymy w linii prostej od wierzchołka głowy do podłoża stojąc bez obuwia, ze złączonymi stopami.
