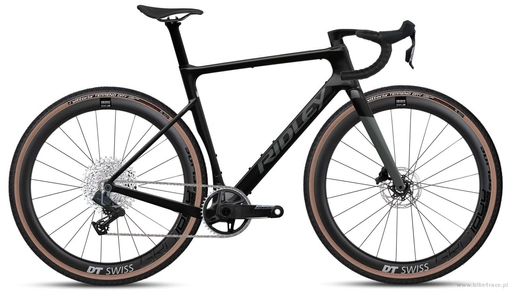

Gravel bicycle RIDLEY ASTR RS - Force XPLR 1x13s - color ARS-02As (UD Carbon-Dove Grey)
- The ASTR RS is a performance-driven gravel bike developed for modern gravel racing.
*rzeczywista specyfikacja produktu może różnić się od przedstawionej na zdjęciu. Prosimy o zapoznanie się z dokładną specyfikacją poniżej.
The ASTR RS is a performance-driven gravel bike developed for modern gravel racing. This is evident from its groundbreaking 52 mm tire clearance — a category-leading move that anticipates the growing trend toward wider tires. Gravel races are becoming increasingly rough, while riders are going faster than ever, placing new demands on the bike.
The Astr RS also features aero-optimized tube shapes and a fork with integrated diffuser, based on our Falcn RS aero-to-weight research. In addition, it has a confidence-inspiring geometry with high-speed stability in mind: longer wheelbase, a slacker head angle, and a lower bottom bracket.
Riders need to conserve more energy during the race. With optimized aerodynamics, greater comfort, lower rolling resistance from wider tires, and improved climbing performance thanks to the low weight, the Astr RS ensures riders reach the finale with more energy in the tank than their competitors.
| ASTR RS | XS | S | M | L | XL |  |
|---|---|---|---|---|---|---|
| A - MAX. SADDLE HEIGHT | 765 | 790 | 860 | 890 | 915 | |
| B - SEAT TUBE, CENTER-TOP | 475 | 500 | 520 | 550 | 575 | |
| C - TOP TUBE, HORIZONTAL | 525 | 550 | 570 | 590 | 615 | |
| D - HEAD TUBE LENGTH | 115 | 130 | 150 | 175 | 200 | |
| E - SEAT TUBE ANGLE | 74,5 | 74,0 | 74,0 | 74,0 | 73,5 | |
| F - HEAD TUBE ANGLE | 71 | 71 | 71,5 | 71,5 | 71,5 | |
| G - CHAINSTAY LENGTH | 425 | 425 | 425 | 425 | 425 | |
| H - BB DROP | 75 | 75 | 75 | 75 | 75 | |
| I - WHEELBASE | 1006 | 1027 | 1043 | 1064 | 1085 | |
| J - STANDOVER HEIGHT | 749 | 776 | 793 | 810 | 821 | |
| S - STACK | 536 | 550 | 571 | 595 | 619 | |
| R - REACH | 376 | 392 | 406 | 419 | 432 |
All RIDLEY frames are warranted by Producer against manufacturing defects in material and/or workmanship for 5 years of the original owner if the frame is purchased from an Authorized Ridley Dealer who perform warranty checkup before sale what is confirmed with a proper receipt/invoice. Frame must be registered within one month after purchase at at Producer website www.ridley-bikes.com/register-ridley
In case of complete bicycles components are warranted separate by specific producer (usually for 2 years).
Future service, maintenance and repairs should be performed according to your knowledge and skills by yourself or by an Authorized Ridley Dealer, or in case of lack of a one in you area at preferred professional bicycle workshop.
Please contact us if any further instructions are needed.
| Size | Min. leg lenght | Max. leg lenght | Height |
|---|---|---|---|
| XS | 79 cm | 83 cm | 162 - 170 cm |
| S | 83 cm | 87 cm | 170 - 178 cm |
| M | 87 cm | 91 cm | 178 - 186 cm |
| L | 91 cm | 95 cm | 186 - 194 cm |
| XL | 95 cm | 99 cm | > 194 cm |
Instrukcja mierzenia
Aby dokładnie ustalić rozmiar niezbędny do zamówienia roweru lub ramy szosowej RIDLEY należy zmierzyć się i porównać wymiary swojego ciała z wymiarami podanymi w tabeli.
Pomiary wykonujemy taśmą centymetrową stojąc w pozycji wyprostowanej i swobodnie oddychając, najlepiej w stroju kolarskim lub bieliźnie.
- Długość nogi - mierzymy w linii prostej od kroku (górna płaszczyzna poziomicy lub innego przedmiotu) do podłoża stojąc bez obuwia ze stopami ustawionymi ok. 20 cm od siebie.
- Wzrost - mierzymy w linii prostej od wierzchołka głowy do podłoża stojąc bez obuwia, ze złączonymi stopami.
