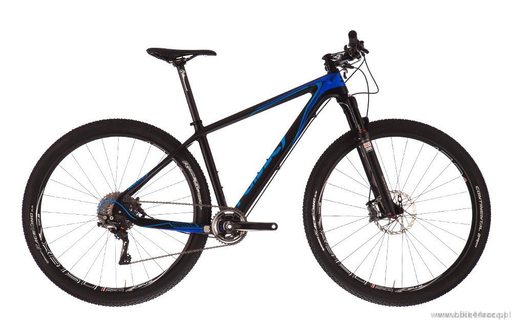

The future of moutainbikes, enabled to use the latest technologies combined with our own development. The use of the Thru-Axle increases lateral stiffness and braking performance, while the Stable Core Concept eases the handling of the Ignite Carbon SL. The DI2-ready frame enables you to assemble your top level bike with the best possible groupset as well.
| SIZE | B | C | E | F | G | H | K |  |
|---|---|---|---|---|---|---|---|---|
| M | 430 | 600 | 100 | 73.5 | 71 | 445 | 62 | |
| L | 480 | 620 | 115 | 73 | 71 | 445 | 62 | |
| XL | 530 | 640 | 130 | 72.5 | 71.5 | 445 | 62 |
RIDLEY [5 years] - Warranty is granted by the producer for a period of 60 months.
All RIDLEY frames are warranted by Producer against manufacturing defects in material and/or workmanship for 5 years of the original owner if the frame is purchased from an Authorized Ridley Dealer who perform warranty checkup before sale what is confirmed with a proper receipt/invoice. Frame must be registered within one month after purchase at at Producer website www.ridley-bikes.com/register-ridley
In case of complete bicycles components are warranted separate by specific producer (usually for 2 years).
Future service, maintenance and repairs should be performed according to your knowledge and skills by yourself or by an Authorized Ridley Dealer, or in case of lack of a one in you area at preferred professional bicycle workshop.
Please contact us if any further instructions are needed.
FRAMESET SPECIFICATIONS (SET INCLUDES): | |
| Frame: | Ridley Ignite CSL9 Carbon HM/HR UD 30/24T |
| Frame material: | carbon |
| Frame weight (at size M): | 1150 g |
| Color: | Ridley Customizer |
| Headset: | FSA 1 1/8 x 1 1/2 semi-integrated |
| Saddle clamp: | 4ZA |
COMPATIBILITY: | |
| Front derailleur: | Clamp-On type 34.9 mm |
| BB: | PF30 standard (Press-Fit 30) |
| Brakes: | R160mm Post Mount |
| Seatpost: | 31.6 mm |
See also
| Size | Min. leg lenght | Max. leg lenght | Height |
|---|---|---|---|
| M | 83 cm | 87 cm | 170 - 178 cm |
| L | 87 cm | 91 cm | 178 - 186 cm |
| XL | 91 cm | 95 cm | > 186 cm |
Instrukcja mierzenia
Aby dokładnie ustalić rozmiar niezbędny do zamówienia roweru lub ramy MTB RIDLEY należy zmierzyć się i porównać wymiary swojego ciała z wymiarami podanymi w tabeli.
Pomiary wykonujemy taśmą centymetrową stojąc w pozycji wyprostowanej i swobodnie oddychając, najlepiej w stroju kolarskim lub bieliźnie.
- Długość nogi - mierzymy w linii prostej od kroku (górna płaszczyzna poziomicy lub innego przedmiotu) do podłoża stojąc bez obuwia ze stopami ustawionymi ok. 20 cm od siebie.
- Wzrost - mierzymy w linii prostej od wierzchołka głowy do podłoża stojąc bez obuwia, ze złączonymi stopami.
