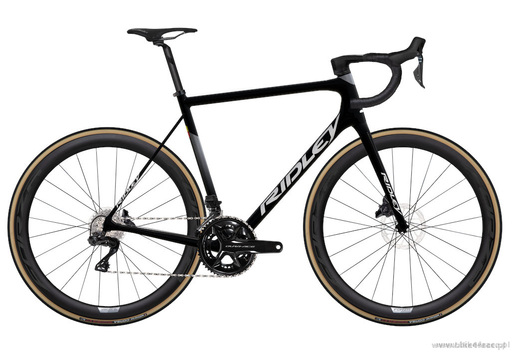

Road frameset RIDLEY HELIUM SLX DISC - Lotto-Dstny Replica Edition (Black-White-Empress Grey Metallic)

The Helium SLX Disc frame is our ultra-gourmet bike. It’s simply at the highest level when it comes to stiffness to weight ratio. We’ve designed it to be as light as possible to tackle the longest, steepest climbs. Yet it is stiff and durable enough to expertly handle the likes of Thomas De Gendt’s one-minute at 500W early breakaway effort. Hence, weight as well as performance is built into this frame as it must satisfy the most demanding of our pro cyclists. The Helium SLX Disc is not only built for the pros, but is designed for anyone who wants to pull everything out of their bike. It’ll help you to be fast on the climbs to grab those Strava KOM’s, fly on the flats and rolling terrain, and sprint like a pro. It’s also comfy enough to keep you motivated to ride long distances to tackle Gran Fondos. By using disc brakes you don’t only have a bike that expertly helps you count altimeters, but provides you with full control in the descent as well.

• use of extremely high modulus aerospace carbon in combination with nano resin to save weight without reducing stiffness
• oversized round tube shape offer the best stiffness to weight ratio
• use of 12 mm thru-axle increased the frame’s stiffness
• specially designed oversized PF30 bottom bracket offers a very high level of stiffness for maximal power transfer
• tapered 1 1/8 - 1 1/4 head tube with angular contact bearings
• flex seat stays provide comfort without sacrificing stiffness
• straight blade fork adds to that sublime handling taking hairpin bends
• aerodynamically optimized by using F-Steerer technology - every cable can be integrated to create a clean cockpit
• compatibile with flatmount discbrakes
• compatible with electronic and mechanical shifting

HELIUM SLX DISC	XXS	XS	S	M	L	XL
A - MAX. SADDLE HEIGHT	740	770	800	830	860	890
B - SEAT TUBE, CENTER-TOP	450	480	510	540	570	600
C - TOP TUBE, HORIZONTAL	515	525	545	565	585	600
D - HEAD TUBE LENGTH	110	130	145	175	205	230
E - SEAT TUBE ANGLE	75,0	74,0	73,5	73,0	72,5	72,5
F - HEAD TUBE ANGLE	71,8	72,0	73,0	73,5	73,5	74,0
G - CHAINSTAY LENGTH	405	405	405	405	408	408
H - BB DROP	68	68	66	66	63	63
I - WHEELBASE	970	970	977	987	1005	1014
J - STANDOVER HEIGHT	721	755	775	804	834	861
S - STACK	507	527	542	573	599	624
R - REACH	374	379	384	390	396	403
